Line 6 Helix Multieffects Processor — Flagship Floor Modeling Engine

The Line 6 Helix multieffects processor is the flagship floor unit of the Helix family, built around HX modeling for stage, studio, and direct-to-FOH use. Two Analog Devices ADSP-21469 SHARC processors at 450 MHz form the audio engine, while NXP ARM Cortex microcontrollers handle routing. Component-level modeling captures the dynamic response of vintage and modern tube amplifiers.

HX Modeling and Component-Level Accuracy

HX modeling measures each stage of an amplifier's circuitry and matches results to the original hardware. Behavioral modeling reproduces notoriously difficult analog behaviors such as germanium fuzz and bucket-brigade analog delay. Cabinet models include 12 microphone types with adjustable distance up to 25.4 cm, and third-party impulse responses load into 128 IR slots.

I/O and Studio Integration

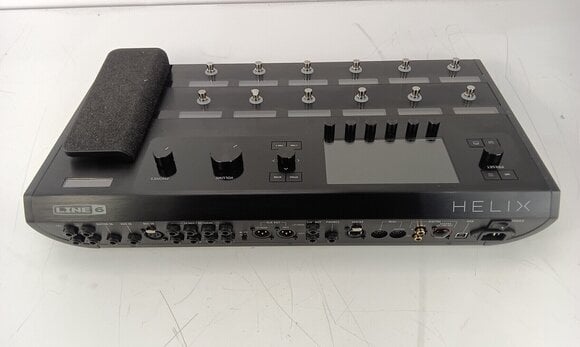

The rear panel targets professional rigs with four independent effects loops supporting per-loop trails for natural preset spillover. Digital connectivity covers S/PDIF in/out, AES/EBU, MIDI in/out/thru, and USB 2.0 streaming 24-bit / 96 kHz audio to a DAW. Two external expression pedal inputs, a CV output, an external footswitch input, and a Variax Digital Interface complete the surface.

• External pedals integrate into any preset block using 4 send/return pairs.
• Digital I/O: S/PDIF, AES/EBU, USB 2.0 — multi-channel audio streaming at 24-bit / 96 kHz
• MIDI integration — full Program Change and CC control over external gear, with USB MIDI for DAW connectivity

Dual-SHARC DSP and Signal Architecture

Two SHARC processors provide headroom for four simultaneous stereo signal paths, letting players process up to four instruments independently. The Command Center dispatches up to six MIDI commands per preset or snapshot recall, and dedicated relays handle external amp channel switching. Sample rates of 44.1, 48, 88.2, and 96 kHz are selectable globally.

• DSP Engine: 2× ADSP-21469 SHARC @ 450 MHz — 2700 MFLOPs per processor
• Signal Paths: 4 independent stereo paths — process multiple instruments or build parallel chains
• HX Model Library — 112 amps, 274 effects, and 87 cabs covering vintage and modern gear

Floor Control and Hands-On Editing

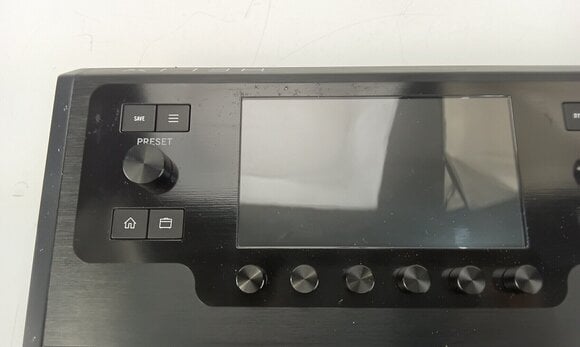

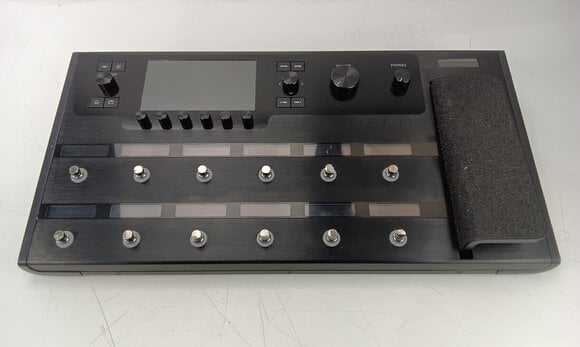

The top panel centers on a color display flanked by a joystick, six parameter knobs, and capacitive-touch footswitches with color-coded LED rings. Each footswitch operates in three modes (Preset, Stomp, Pedal Edit), giving extensive assignable layers. A built-in expression pedal handles volume, wah, or any assignable parameter, while a Tap/Tuner button provides chromatic tuning.

• Capacitive-touch footswitches with LED rings offer three operating modes for preset, stomp, and parameter editing.
• Expression Control: Built-in pedal + 2 external inputs — assignable to volume, wah, or any continuous parameter
• Headphone output — silent practice and preset editing without an amp, with adjustable level
