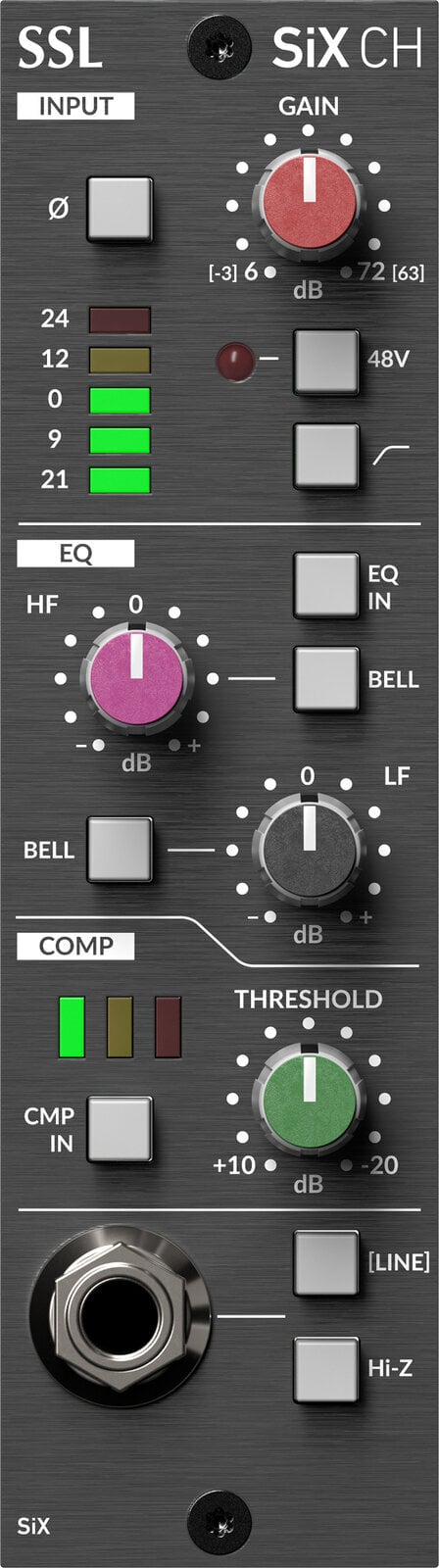

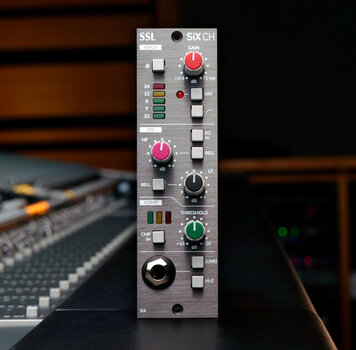

SiX Channel Module from SSL combines legendary analogue design with modern versatility. Designed for the SiX mixer and large-format SSL consoles, this module delivers pristine audio quality with a wide array of features for recording, mixing, and summing.

The module includes a SuperAnalogue™ mic preamp with ultra-low noise and wide gain range, perfect for any source. It also features SSL-style high and low EQ with switchable shelving and bell curves, allowing precise tonal shaping. A single-knob channel compressor offers program-dependent attack and automatic make-up gain, providing punchy and consistent dynamics. The front TRS line input with Hi-Z switch makes it ideal for high-impedance sources like passive guitar pickups.

• SSL SuperAnalogue™ mic preamp
• +48V phantom power and phase invert switch
• 5-segment LED meter in dBu
• Switched 12 dB/oct, 75 Hz High Pass Filter (HPF)
• Classic SSL HF and LF EQ, shelving or bell switchable
• Single-knob channel compressor with variable threshold
• Front panel TRS line input with 1MΩ Hi-Z switch

Technical Specifications

• Module signal: Mono
• Pre-Amp Gain: +6 to +72 dB (Mic), -3 to +63 dB (Line)
• Mic Pre EIN: Typically 129 dB
• THD+N: <0.0015%
• CMRR: >80 dB (Mic), >70 dB (Line)
